| Type: normally closed NC |
| Supply voltage: 230V AC, 50 – 60Hz |
| Control signal: on/off |
| Quiescent current: 6.5 mA |
| Standby power consumption: 2 W |
| Maximum force: 110N |
| Stroke: 4 mm |
| Stroke duration: 180 sec |
| IP class: IP54 |
| Maximum operating temperature: 120°C |
| Operating temperature: 0 – 45°C |
| Cable length: 0.65 m |
| Dimensions: 62 x 39 mm |
| Weight: 0.15 kg |
230-NC

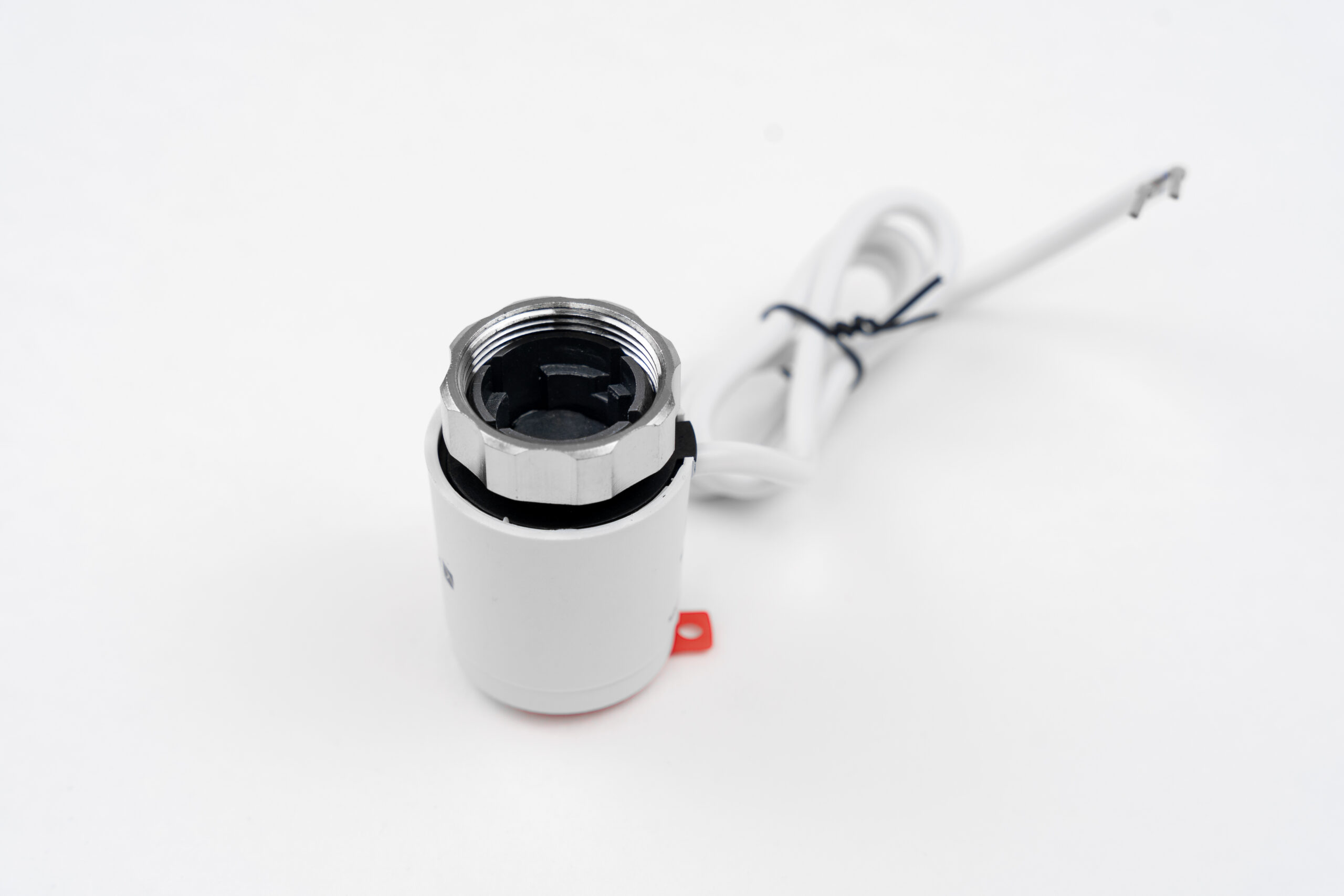

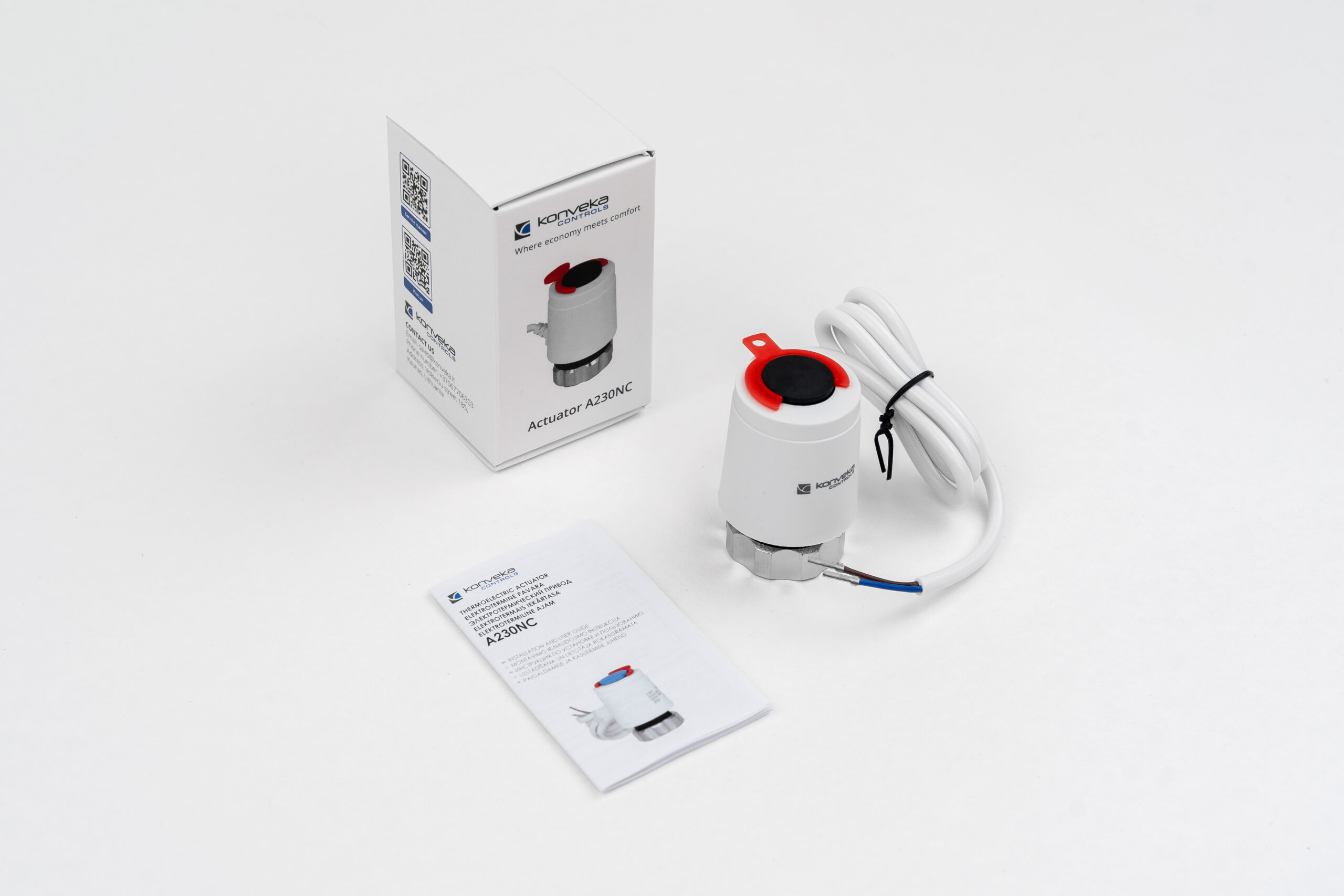

Electrothermal actuator A230-NC
The A230NC electrothermal actuator (normally closed) is designed to control thermostatic valves or manifolds in heating and cooling systems. It can be controlled by a controller that sends an on/off signal or by a switch. This type of control allows for economical use of heat and/or cold in systems such as underfloor heating, radiators, fan coils, convectors, etc.
17.00 € VAT inc. pcs
In stock
